Hydroponic Garden System Guide – Step by Step

This is a branch of hydroculture in which plants are grown in an aquatic based environment or soilless medium.

The medium does not have to be water, it can be a solution filled with nutrients or an inert growing medium such as sand or perlite.

This type of hydroculture allows plant roots to be in direct contact with a nutrient solution and also have oxygen.

What is a hydroponic system?

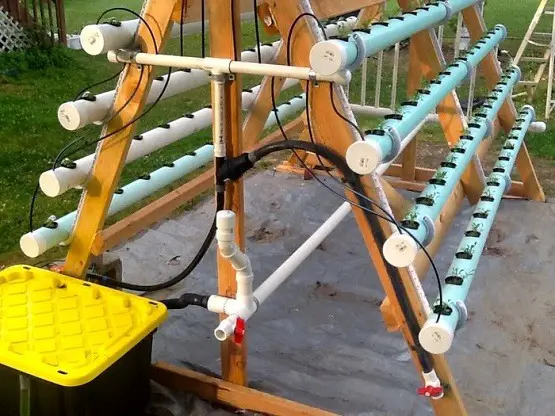

This is a structure such as a tray, A-frame or tower that holds an inert medium or water and provides a place to grow plants.

There are different types of hydroponic systems which can meet individual needs of plants. However, each system has to have three essential ingredients for plant growth.

These are oxygen, water/moisture, and nutrients. Hydroponics systems can be classified into the following two categories.

Solution culture: In this hydroponic system, a nutrient-filled solution is provided for the plant roots to grow directly in. It is also known as liquid culture.

Aggregate culture: In this hydroponic system, a medium such as sand, small clay pellets or gravel is provided for the roots to grow in.

How to Grow Hydroponic System Steps by step Tutorial

You can learn how to make a hydroponic garden by following the steps below.

      1. Decide what you want to grow: You will need to decide what to grow and then buy the hydroponic seeds. Buying seeds will let you be in full control of what to grow. You can also decide to buy seedlings from a hardware or plant store.
      2. Start your seeds: After deciding how many of each plant you want to grow you will need to start your seeds. This is done by covering them with a plate and putting them in a spot that is warm. You can label the seeds if they are different. Ideally, you should start the hydroponic seeds 3-5 days before you begin building your hydroponic system. You can also use a seedling heating mat.
      3. Choose a location: You should choose the location of your hydroponic garden and estimate the size needed. You should consider the type of seeds you are planting and the recommended spacing.
      4. Marking and spacing: Mark and space holes for the pots to be placed in them. A shade cloth should be put over them for the first 3-4 weeks and in hot climates.
      5. Prepare nutrient solution: Using water and best hydroponic nutrients or fertilizers make up a hydroponic solution to the recommended pH.
      6. Planting your hydroponic seedlings: It is now time to plant your seedlings (self-raised or bought). Carefully take them out of their pots and gently wash away the soil from the roots.
      7. Hydroponics Growing medium: Place the seedlings you have cleaned into the growing medium and into the hydroponic solution.
      8. Monitoring your hydroponic plants: Check on the solution daily and control the chemical balance of water to nutrients since the water usually evaporates.
      9. Growth of your plants: Watch and wait for your hydroponic plants to grow. You should be sure o keep pests away and watch for root rot.
      10. Pruning: Make sure you use best pruning shears to keep plants tidy, manipulate fruit size, and even speed ripening. This technique is used by some farmers but it is optional.
      11. Harvest your grow: Once your plants are ready you can harvest them.
      12. Flushing: After harvesting, you should flush the entire system. Use peroxide to sterilize and copper solutions to kill mold and bacteria.

Why choose to grow plants in a hydroponic system

Hydroponic plants have a higher growth rate than soil plants grown under the same conditions. They also produce greater yields. This can be attributed to the fact that the nutrients are available all the time.

The plants need not produce large roots and they can devote all their energy to producing the crop which results in bigger crops.

Hydroponic plants also have fewer problems with disease, funguses, and bug infestations.

You can grow almost any houseplant, fruit or vegetables such as leeks, garlic, kale, spinach just to mention but a few that you want in your hydroponic garden.

Hydroponic systems are also beneficial to the environment. Hydroponic gardening constantly reuses the nutrient solutions which mean that it uses less water than soil gardening.

Top soil erosion is not an issue because hydroponics gardening system does not use soil.

What do I need to get started?

Deep Water Culture (DWC) Hydroponic Bubbler Bucket Kit by PowerGrow ® Systems (4) 5 Gallon - 10' Buckets
159 Reviews
Deep Water Culture (DWC) Hydroponic Bubbler Bucket Kit by PowerGrow ® Systems (4) 5 Gallon - 10" Buckets
  • Easy to use complete Deep Water Culture Hydroponic System! 4 Growing Sites!
  • Deep Water Kit Includes Air pump, air lines, air stones, 10" basket lids, (4) 5...
  • Each Deep Water Culture bucket includes a water level indicator and drain so...

Homemade hydroponics is gaining popularity and you may wonder how exactly should you go about it.

It is interesting to note that you can also farm mushroom using hydro farming, read more here.

If you decide to go the hydroponics way and want to build your own hydroponic system there are several things you will need which include:

      • Electricity
      • A water supply
      • Reservoir to hold the nutrient solution

Check other items you need below:

Hydroponic Grow Tent for Indoor Plant GrowingApollo Mylar Plant Growing Tent - 100% Reflective Tear Proof Mylar / Heavy Duty Zippers & Double Stitching for Light Protection.4.332.3 poundsCheck Price
Inline Exhausting Fan & Carbon Air FilteriPower High CFM Inline Exhausting Fan & Carbon Air Filter w/1050+ 4.34 InchCheck Price
Active Aqua Submersible Water PumpIndoor / outdoor use. 100+ gallon reservoirs, 1,000 gallons per hour. Environmentally safe.4.31000 GPHCheck Price
AeroGarden Classic 6 with Gourmet Herb Seed Pod KitMiracle-Gro Full spectrum 20-watt LED lighting system. Grow 6 Plants e.g fresh herbs, vegetables, salad greens, flowers. 4.4Check Price
LED Grow Light Full Spectrum ETL Certification Lighting for Hydroponic Indoor GreenhouseVDE and UL Certification Wires with Heatproof Tube. Coverage: 2×2ft(Veg); 1.5×1.5ft(Bloom), Power draw: 110v4.612 x 8 x 3 ftCheck Price
Advanced Platinum Series P300 300w 12-band LED Grow LightPlatinum LED lights. 2x-3x the intensity of any other lights. 2x high speed whisper quiet fans. 4.5400w HPSCheck Price
Led Grow light Bulb , Grow Plant Light for Hydropoics Greenhouse OrganicTaoTronics 12 LEDs (3 blue & 9 red), ultra bright. No energy waste like fluorescent lights. 4.5E26 12w 3 BandsCheck Price
General Hydroponics General Organics Go BoxBioThrive Grow and Bloom fertilizers. Samples of CaMg+, BioRoot, BioWeed, BioBud , BioMarine & Diamond Black4.3Check Price
Liquid Nutrient Trio Soil Formula: Big Bloom, Grow Big, Tiger Bloom Pack of 3 - 32 oz. bottlesIdeal for mature, late-season flowers and fruit. Grow Big produces lush, vegetative, compact growth. 4.732 ozCheck Price
General Hydroponics General Hydroponics Ph Control KitPh Control Kit works superbly in hydroponic environments. Includes 8oz bottle of pH Up & pH Test Indicator tube4.68 oz Check Price
Clay Pebbles Grow Media for Aquaponics • Aquaculture • Hydroponics100% natural expanded clay. Inert, pH-neutral & clean. 4.82LBSCheck Price
Hydrofarm Grodan Rockwool PlugsGrodan Stonewool (rockwool) made from molten rock spun into cotton candy-like fibers. V-shape design. 4.51 Sheet of 98Check Price
Round HEAVY DUTY Net Cups Pots For Aquaponics • Aquaculture • Hydroponics3 inch Net cup. Appropriate-sized grow media. Wide Lip design.4.73-1/4" Wide by 2-1/2" TallCheck Price
Jump Start Hot House with Heat Mat With TrayWaterproof heat mat, 17 watts, 120 volt. 2" humidity dome. 11" x 22" watertight base tray.4.02 Inch DomeCheck Price
Deep Water Culture Hydroponic Bucket Kit 5 GallonInexpensive complete kit by PowerGrow Systems. Includes 44 GPH Air Pump, Air Tubing, Air Stone, Growing Medium, and Rockwool Seeds Starting Plugs. 4.48 poundsCheck Price
Viagrow Complete Ebb & Flow SystemFlood & Drain Fitting Kit • 50 Liter Bag Grow Rocks - ViaStone • Viagrow 211 GPH Submersible Pump.3.7100 poundsCheck Price

Where can I get a hydroponics system?

You can purchase hydroponic systems, hydroponic seeds, hydro grow nutrients, light sources and other components from a variety of hydroponic suppliers.

It is always wise to buy from reputable suppliers who can make recommendations and offer a warranty on the products you buy.

Do it yourself (DIY) hydroponic systems are also an option that you can look into if you want to try out homemade hydroponics gardening.

Can I build my own hydroponic system?

If you are handy with gardening tools then you can learn how to make a hydroponic garden.

The question is which is the best hydroponic system to adopt, keep reading because we’ll address that in this post.

You can buy the various components which also include a full grow tent kits at stores and build your own hydroponic system.

Diy hydroponic systems offer the user the freedom of customizing the design to fit the available space and plants being grown.

You will need to use specially designed nutrients for your system which you can buy. You will also need to use hydroponic medium, which are inert, that do not break down quickly.

You can use a hydroponic medium such as small clay rocks, Rockwool, coconut fiber, sand, vermiculite, and perlite.

What about light?

If you decide to build indoor hydroponic system you will need a grow light. This is an artificial light source which emits light appropriate for photosynthesis.

There are different types of grow light kits available such as metal halide, high-pressure sodium bulbs, high output fluorescents, LEDs lightings and compact fluorescents.

You can also choose to grow hydroponically outdoors to make use of natural light. Reflector-Series 600W LED Grow Light Full Spectrum for Indoor Plants Veg and Flower

VIPARSPECTRA 600W LED Grow Light,with Daisy Chain,Veg and Bloom Switches, Full Spectrum Plant Growing Lights for Indoor Plants Veg and Flower Actual Power 260 Watt
1,302 Reviews
VIPARSPECTRA 600W LED Grow Light,with Daisy Chain,Veg and Bloom Switches, Full Spectrum Plant Growing Lights for Indoor Plants Veg and Flower Actual Power 260 Watt
  • 【Optimal Spectrum】The secret to VIPARSPECTRA’s success is optimal full...
  • 【VEG & BLOOM Switches】 The V600 light comes with VEG and BLOOM...
  • 【Daisy Chain Function】Daisy Chain feature assists growers to connect...

Hydroponic seed nursery

When sprouting a seed, four main things needed are water, light, oxygen and temperature. You can use a grow tray and dome to create a miniature greenhouse.

Fill the grow tray with clean water or a weak nutrient solution until it is 1/2” full from the bottom.

Ensure there is adequate light and recommended temperature usually 75-90°.  You may also need to use a heating mat if space is cold.

Root Radiance Seedling Heat Mat Pad 48” x 20.75” for Plant Seed Starting, Indoor Germination Supplies Black, Large
279 Reviews
Root Radiance Seedling Heat Mat Pad 48” x 20.75” for Plant Seed Starting, Indoor Germination Supplies Black, Large
  • The heating pad warms the root area 10-20 degrees over ambient temperature to...
  • The plant heating mat is designed for seed starting and growing plants from...
  • Distributes heat evenly to deliver consistent and stable warmth to seedlings,...

Germinating your hydroponic seeds

Soak your starter cubes in clean water for an hour and then shake out any excess water. Insert 2-4 seeds into each starter cube hole.

Place the starter cube in a nursery. You can opt to use zip lock bags and add extra drops of water. Add water or nutrient solution directly to the tray.

Once the seeds have germinated gradually intensify the plant light. You can do this by moving the lighting closer to the plants each day.

Continue feeding your seedlings with hydroponic nutrients that are properly mixed.

Transplanting your hydroponic seeds

Once the roots start poking out from the starter cube they are ready for transplanting. Depending on the type of plant this can take from 2-4 weeks.

Transfer and cover the starter cube by clearing a small are in the growing media. Water your transplanted seedling with the appropriate nutrient solution for the first few days.

This will allow the seedling’s root system to naturally seek out its new nutrient and water source.

Super Sprouter Premium Heated Propagation Kit for Starting Seeds or Cuttings, Includes Heat Mat, Tray, Grow Light, and More
1,690 Reviews
Super Sprouter Premium Heated Propagation Kit for Starting Seeds or Cuttings, Includes Heat Mat, Tray, Grow Light, and More
  • Super Sprouter 7 in Ultra Clear Vented Dome with built in light track channels
  • Super Sprouter 18 in high output T5 fluorescent grow light designed for the...
  • Super Sprouter Double Thick 10 x 20 inch tray with no holes

Main Types of hydroponic systems

With the right systems of hydroponics you can easily double your crop production.  Below find some of the simple and best hydroponic systems that you can adapt.

  • Wick system

Hydroponic wick system

The simplest type of hydroponic system is the wick system. This system is passive and has no moving parts.

A wick is used to draw the nutrient solution into the growing medium from the reservoir. However, large plants may use the nutrient solution faster than the wick can supply it.

Growing medium that can be used for the wick system includes vermiculite, perlite, coconut fiber and pro-mix among others.

  • Deep Water culture hydroponic system

No products found.

This type of hydroponic system makes use of a platform usually made of Styrofoam that holds the plants.

The platform floats directly on the nutrient solution. An air stone is used to bubble the nutrient solution and supply oxygen to the plant roots. Air is supplied to the air stone by an air pump.

The water culture is a great system for growing fast growing water loving plants such as the leaf lettuce and can be made out of a water tight container. However, the water culture system does not work well with large or long term plants.

Click Here to compare prices.

  • Ebb & flow hydroponics system

ebb and flow

It is also known as the flood and drain system. This hydroponic system works by using the nutrient solution to temporarily flood the grow tray and then drains the solution.

This system uses a submerged pump connected to a timer. The medium that can be used for the ebb and flow system include gravel, granular rock wool or grow rocks.

The growing medium can be filled in pots to make it easier to move the plants around.

Get quality Hydroponics supplies at Nasco.

  • Drip systems

drip hydroponic farming

The drip hydroponic system uses a simple operation that requires a timer and a submersed pump.

Once the pump is turned on by the timer, the nutrient solution flows through a small drip line and drips onto the base of each plant. The drip system can be recovery or non-recovery.

Recovery drip system: In this system, a reservoir is usually in place to collect the excess (run-off) nutrient solution for re-use. As this system does not require precise control of watering cycles, an inexpensive timer can be used.

The reservoir requires periodic monitoring and adjustment of nutrient strength levels and pH. Non-recovery drip system: In this system the runoff is not collected.

A precise timer is required to ensure that runoff is minimal and the watering cycles are not interrupted so that the plants get an adequate nutrient solution.

This system does not require adjustment of pH levels because pH and nutrient strength remains constant.

  • Nutrient Film Technique (N.F.T.)
GOWE Hydroponics system NFT with 36pcs of net cup. Nutrient Film Technique (NFT)100120
1 Reviews
GOWE Hydroponics system NFT with 36pcs of net cup. Nutrient Film Technique (NFT)100120
  • Hydroponics system-Nutrient Film Technique (NFT) NFT provides no medium support...
  • This feed cycle can be intermittent or continuous. An ¡intermittent¡¯ feed...
  • you can easily grow your favourite flowers in your home without any muddy mess...

This type of hydroponic system has a constant flow of nutrient solution. A timer is not required for the submersible pump which pumps the nutrient solution into the growing tray and flows over the plants roots before draining into the reservoir.

This type of system uses air only as a growing medium.

  • Aeroponics
Nutraponics Hydroponics Tower - Hydroponics Growing System for Indoor Herbs, Fruits and Vegetables - Aeroponic Tower with Hydrating Pump, Timer, Adapter, Seeding Bed & Net Pots (48 Pots)
58 Reviews
Nutraponics Hydroponics Tower - Hydroponics Growing System for Indoor Herbs, Fruits and Vegetables - Aeroponic Tower with Hydrating Pump, Timer, Adapter, Seeding Bed & Net Pots (48 Pots)
  • Vertical Hydroponic System for Organic Farming: The aeroponic tower is a...
  • Effortless Results Every Time: Specifically tailored to provide the optimum...
  • Highly Energy Efficient: With Nutraponics, you are in control of air humidity,...

This uses air as the growing medium. The roots are usually hanging in the air and then misted with the nutrient solution every few minutes.

If misting cycles are interrupted the roots dry out and so the system requires a short cycle timer which runs the pump every few minutes. Click here to get the latest prices for an indoor Aeroponics system.

It doesn’t stop there, click here to see more advanced hydroponics growing kit.

Types of Hydroponic lights Lamp

Different lighting can be used in hydroponics to aid in plant growth. It is important to provide plants everything they need to grow. Light is one of the factors needed and is crucial to plant growth.

Giving your plant all the other variables and not light will make the plant not reach its maximum potential. Light bulbs produce a range of colors. Plants react differently to different color spectrums and certain spectrums provide the best growth for certain plants.

Using the correct spectrum for your plant will ensure you achieve maximum yields.

  • Incandescent lights

These are commonly used as household bulbs and are not efficient for plant growth. They also produce a lot of heat which will make the cost of cooling your plant’s increase. Incandescent lights are not recommended in hydroponics.

  • Fluorescent lamps

Hydrofarm Agrobrite FLT24 T5 Fluorescent, 2 Foot, 4 Tube Grow Light System, 2-Feet, White
2,003 Reviews
Hydrofarm Agrobrite FLT24 T5 Fluorescent, 2 Foot, 4 Tube Grow Light System, 2-Feet, White
  • 3"H x 13.5"W x 23"L
  • Includes 8' grounded power cord
  • Includes 4 6400K T5 Tubes

These are great for indoor plants. High output bulbs are very efficient and will produce more light while using less electricity.

Fluorescent lamps are available in different spectrums and you can choose the one most ideal for your plant. However, they are not the best for large plants because they do not deeply penetrate.

Compact fluorescent lamps can also be used while ensuring to use reflectors because the light is produced in all directions.

Click here to check prices.

  • High-Intensity Discharge (HID) Lamps

KingLED 2023 Newest 1000w LED Grow Lights with LM301B LEDs 3 * 3 ft Coverage Full Spectrum Grow Lights for Indoor Hydroponic Plants Greenhouse Growing Lamps Veg Bloom Daul Mode
5,949 Reviews
KingLED 2023 Newest 1000w LED Grow Lights with LM301B LEDs 3 * 3 ft Coverage Full Spectrum Grow Lights for Indoor Hydroponic Plants Greenhouse Growing Lamps Veg Bloom Daul Mode
  • HIGH QUALITY LED GROW LIGHT: KingLED grow light has adopted the newest LM301B...
  • FULL SPECTRUM LED GROW LIGHT: The proportion of the spectrum has been adjusted...
  • COST-EFFECTIVE LED GROW LIGHT: Different from the traditional HPS, Our KP1000...

These lamps are up to 8 times more efficient than incandescent lamps and have very high light output. They make use of a special bulb and electronic or mechanical ballast.

Extra ventilation is required when using HID’s because they produce a lot of heat. The lights should ideally be hung 2 ft above the plants.

Click here to check best price on Amazon.

Hydroponics with LED light technology

Light is crucial to hydroponics and the invention of LED light technology has come with great benefits to hydroponics.

LED light has full spectrum lighting and is used to give greenhouses optimum environment for plant growth. Click here to learn more.

In a controlled environment, the technology is used because its effects can be closely monitored and adjustments made to maximize yields.

LED light technology can be used for plants that require different spectrums because the technology can be tailored.

LED’s can be used in hydroponics as the main source of light. However, if the environment has sunlight exposure it can be supplemental.

Unlike another form of lighting, LED’s do not require reflectors; they direct all of their light to the plant. They can be placed close to the plant because they are less radiant.

Roleadro Grow Light, 1000W LED Grow Light Full Spectrum Galaxyhydro Series Plant Light for Indoor Plants with IR for Greenhouse, Hydroponics, Seedlings, Veg and Flower
1,925 Reviews
Roleadro Grow Light, 1000W LED Grow Light Full Spectrum Galaxyhydro Series Plant Light for Indoor Plants with IR for Greenhouse, Hydroponics, Seedlings, Veg and Flower
  • ►Blurples Light—Roleadro Grow light is an infrared grow light that is great...
  • ►Higher PAR Value and Energy Saving—Unique 90 degree optical lens and...
  • ►Unique LED Bead and Zener Design—This plant light adopted led bead and...

Learn more about hydroponic grow lighting.

How do I choose the best light for my plant?

Budget, size and type of enclosure and ventilation are the factors that need to be considered when buying grow lights.

Fluorescent lamps are best for low budget growers while compact fluorescent lamps are better for small scale growers.

HID lamps produce the highest output and are best for larger plants. Enclosed reflectors are recommended when using HID lights.

It is also ideal to vent the grow space to the outside or a crawlspace when using HID lights. LED’s are best for long term growers and will help save money in the long run.

Examples Of Hydroponics Gardening Systems

Above we’ve discussed the main types of hydroponics farming setups, now we look into other Do-It-Yourself hydroponics which you can easily to implement in your backyard. These plans and designs in hydroponics include;

Hydroponic green wall systems

Hydroponic wall

Image from rugsandblinds

These can be either large panels or modular containers. They are installed through brackets which sit out from a load bearing wall so as to create an air gap between the green wall sheet and the wall.

The physical anchor of the plants holds the growing medium which is inert. This acts as sponge that retents water.

Click here to check price.

Hydroponic Tiered System

Hydroponic Tiered System

Hydroponic tiered system utilizes stacks to maximize space use making it very efficient. A variety of plants, fruits, and vegetable can be used on this system such as strawberries, tomatoes, and wild herbs.

Most off the shelf models are automated making maintaining your garden easy. Manual tiered systems are also available. They require you to determine a watering schedule.

An electric unit can be used. It includes a timer and a pump; a reservoir is also needed and can be filled every few weeks depending on the size.

Boxed Hydroponic garden

Boxed Hydroponics

Boxed hydroponics involves growing plants in a box system. It is ideal for indoor cultivation. Fully automated models are available in the market and they are easy to assemble and maintain.

The boxes come with an enclosed chamber which contains the wiring, grow lights, grow medium and environmental controls.

When choosing a box you should consider boxes whose exteriors are made of aluminum because that is the best material for indoor or patio growing.

The boxes should also be well ventilated while keeping odor away and the lights trapped in the box. The box’s interiors should be able to allow reflectiveness and this can be done by painting it white on the inside.

Click here to check price.

Hydroponic Indoor Cupboards

Hydroponic Indoor Cupboards

Indoor cupboards are designed to make growing plants much easier. Quality yields can be achieved y ensuring that the reservoir water is changed every week or so, adjusting the pH and adding required nutrients to the system.

Most off the shelf models include 8 band spectrum LED lights for effective pant growth. Adjustable net trail are used to support yields that are heavier.

The airflow is controlled by an internal fan which is adjustable. Some models have a CO2 regulator which increases yields by 30%.

Read a detail post on how to setup co2 grow room.

Windowsill Hydroponic System

Windowsill Hydroponic System

This system is simple to construct and will help you save money on basic vegetables and fruits. A common roasting pan can be used as a container.

It should be made of alum foil. An insulation medium such as fiberglass should be wrapped around the tray to protect from sudden temperature variations.

Space is usually a factor that inhibits people from gardening. But using the windowsill hydroponic system plants can be grown in the very comfort of your home. This gives you fresh vegetables as well as adding to the aesthetic value and décor of your home.

Various planters are also available in the market. They can be none powered or powered by solar or electricity. A basic planter unit can grow 3 plants.

The system uses drip irrigation system and the window sunshine is usually adequate lighting. However, if the window does not let in tons of sunshine you can supplement with LED grow lights.

Small Container DIY hydroponics system

No products found.

Small containers can be recycled and used as planters that can be placed in and around the house. You can DIY and convert unused containers into a small hydroponic system. You can put it all together by yourself.

The small container hydroponic system can utilize two systems to operate. One uses electricity and a small pump to operate. The second does not use pumps, cords or tubes. It is now circulating.

CFL lamps are adequate for most plants but fruiting plants such as peppers and huge tasty tomatoes will require more light for maximum yields. You can choose to paint the container to fit into your home décor.

DIY Powerhouse Hydroponics, DIY Condensed Hydroponics System Cheap and Expandable Hydroponic System can be constructed with readily available materials from a hydroponics store to create a simple system to grow plants in.

Or check out prices here of already designed hydroponics just require you to setup.

Raft Hydroponic System

Raft Hydroponic System

This hydroponic system is cheap efficient and fun to build. The system works by using the raft as water culture system.

The plants are suspended on top of a pool of water with nutrient solutions and the roots dangle inside it.

The pants are held afloat by a material such as Styrofoam. Plants commonly grown in this system are short in statures such as hibiscus flowers, kitchen herbs and tomatoes, learn more about hydroponics tomatoes.

Hydroponic Crystal Magic

Hydroponic Crystal Magic

This is a multi-functional mixture of nutrients which include nitrogen, potassium, and phosphorus among others. It is odorless, non-toxic and not a pollutant.

Crystal magic is colorful and can be used to grow flowers and plants without watering for a long time. It can also be used as a decoration by placing it in a transparent container.

Cascades of Bottles Hydroponics

Hydroponic Using Plastic bottle with lights

Bottles can be recycled and used o grow soilless plants. In most cases, you will need the bottle with the caps on. They should also be clean.

The bottles can be oriented against a vertical wall or hung on strings hanging down in a cascading line. They can also be hung diagonally.

How you orient the cascade of bottles depends on how you want to situate your plants. Access holes should be cut out to allow an area for the plants to sit in.

This can be done by hollowing out on side of the bottle and letting it serve as the irrigation drain.

You can also cut a few air holes to allow the plants to breathe. In this case, the plants are basically enclosed in the bottle. The irrigation tubing should run from one bottle to the next.

You should ensure that the bottles will hold the water in pace while feeding the plant roots. A reservoir is necessary to hold water when it’s not being used and a pump will be required to get water to the top.

Dutch Bucket Hydroponic System

Dutch Bucket Hydroponic

Image by knutsonsharvest

Hydroponic Dutch bucket systems are also known as bato bucket systems. They are simple to build and the buckets break the media bed system into smaller components.

This system can allow for each bucket to be set up separately which allows larger crops to be spaced out without wasting the growing medium.

The system is also useful for the management of pests because an infected plant can be removed from the system. It is considered to one of the best hydroponic system and its easy to implement.

Click here to check price.

Kratky Hydroponic System

Kratky Hydroponic System

This system is great because it allows plant growth without the use of pumps, electricity or wicks. It does not require a reservoir or the addition of nutrients.

A pot is filled with growing medium and placed in a reservoir which is then filled with a specific nutrient solution. Ensure that the nutrient solution does not reach the net pot.

An airstone is added to the system to create bubbles which pop to the water surface. The bubbles hit the growing medium and feed the plant’s root system. As the roots grow, they hit the water surface.

The Kratky hydroponic system ensures that your plants never dry out because the growing medium is always wet.

As the plant grows, the water level declines. However, by then the plant roots have descended into the solution of nutrients. More of the root system is exposed to the air ensuring that the plants get adequate oxygen to thrive.

Zig Zag Hydroponic System

Hydroponic Site Grow Kit 90 Site System with Nest Basket Water Pump and Sponge
75 Reviews
Hydroponic Site Grow Kit 90 Site System with Nest Basket Water Pump and Sponge
  • The system produces high-quality vegetables, herbs, melons, and berries--45-day...
  • Extremely simple to assemble and use, this hydroponic indoor or outdoor grow...
  • This hybrid model can be Ebb and Flow type when using a time controller or a...

This system allows you to use a small space as small as 1-meter square to grow plants.

A water pump, nutrient solution, nutrient tank, grow tube columns (with elbow connectors), hose connectors, hydro ton clay balls, hydroponic pots and germination pellets are the items needed to construct the zig zag hydroponic system.

A-Frame Hydroponic System

A-Frame Hydroponics

This system creates a vertical garden maximizing the number of plants which can be grown in a small space. The system can be done by small-scale growers or adapted into a much larger system.

It can be constructed using inexpensive materials such as boards for the A-frame, a plastic reservoir, PVC tubes and pipes to circulate the water and valves to control the flow of water drainage. The system is also portable.

PVC gutter hydroponics

PVC gutter hydroponics

image picked from instructables

PVC gutters can be used to construct a hydroponic system to grow plants. The system is used on windows that do not have tables.

If a table already exists on the window the frame can be modified to fit in. This system is however only experimental. A hydroponics store can supply the nutrient solution, growing medium, tubes, pumps and other equipment.

Learn more about pvc hydroponics farming.

Click here to check prices of PVC gutter.

Hydroponic Fish Tank

Hydroponic Fish Tank

Hydroponic fish tanks make use of fish tanks to grow plants. It is a symbiotic relationship because the fish in the tank fertilize the plants while the plants clean and filter the water for the fish.

Fish excrete ammonia which is toxic to fish in a regular tank. In the hydroponic fish tank, the ammonia is pumped up to the plants which enable them to grow two times faster.

The clean water is then filtered and recycled into the fish tank. This system creates a self-cleaning low maintenance cycle which provides a garden as well as healthy fish.

Hydroponic fish tanks are available in aquaponics or hydroponics supply stores. The come in different sizes and shapes. To get started you will need a fish tank, organic radish sprout seeds, and wheatgrass fish food, fertilizer, water pump, grow stones and gravel.

Click here to check best price.

Hydroponic Vertical Garden Pipe

Hydroponic Vertical Garden Pipe

The hydroponic vertical garden pipe allows you to have a vertical hydroponic garden system. This maximizes on available space and has a unique system of irrigation ensuring minimum water wastage.

Excess water from the plant above is soaked up by the plant below it and so on. The system is portable and can be used time and again.

Click here to check price for the indoor kit.

Hydroponic Rain Tower

AquaVertica Grow System

The hydroponic rain tower uses a pump to deliver the nutrient solution to the top of the tower. The nutrient solution then rains down on the plant roots inside the tower.

The main tower can be a PVC fence post with another PVC pipe holding the pots diagonally in the tower. A bucket can be used as a reservoir to hold water and nutrient solution.

Click here to buy one today.

Smartphone Powered Hydroponic

Smartphone Powered Hydroponic Garden

Hydroponics has advanced with new technology such as the Smartphone and Aerogarden gaining an important role.

Smartphone apps are available in the current market to help monitor and control your hydroponic garden even while you are away from it.

The Smartphone powered hydroponic system feeds and waters your plants allowing you to control and create the perfect environment for your plants.

Sensors are used to detect changes in water levels and pH. Light cycles, humidity, temperature, and irrigation are automated for better plant yields.

Some of the features in the Smartphone hydroponic system include an automated irrigation system which varies with the type of plant being grown.

Vegetables require a warmer temperature and a heater system is also incorporated to cultivate the right temperature for the plants.

Smartphone hydroponics system allows you to stay connected anywhere anytime and you can check up on your plants. The other kit that is automated is the Aerogrow kit.

Click here to check it out.

Big Buddha Box Vertical Hydroponics

This type of hydroponic system utilizes VerticalPonic technology. This technology combines the vertical hydroponic system with SuperCloset’s SuperPonics.

This enhances crop yield to 5 times more. It also enhances plant growth giving yield that is five times bigger. The system comes with dimmable lights and can sustain up to 75 plants.

It includes a watering system and Air pumps to power the oxygenation system. A 70-gallon reservoir acts as a backup to ensure the success of your plants.

Click here to check out price and discount.

Hydrofarm Vertical Grow Shelf System – 6 S…

The Hydrofarm Vertical Growing Shelves are great for propagation, cloning, seed startin… [More]

Ezgro Original hydroponic Garden Planter

Ezgro Original hydroponic

Ezgro is a type of hydroponic system that is vertical and utilizes stacks. It can be used indoor or outdoor.

The system is efficient and soilless. It uses less space, nutrients, and water while producing better yields than traditional gardening.

Weeding and pests are eliminated making the plants grow better. The Ezgro original hydroponic is easy to assemble and use. Its maintenance is pretty straightforward and instructions come with each model.

Special organic medium and nutrient solutions are provided in every kit. Ezgro pots are protected from UV and are made from nested plastic which is stain resistant and unbreakable.

Click here to check out price.

Window Front Aquaponic System

Aquaponic System

Not any species of fish can be used for aquaponics gardening. With the Fun store front aquaponic system you are able to get fish and plants that will provide each other with the necessary nutrients in a symbiotic system that is beneficial to all.

To learn more about aquaponics system click here.

Substrate-based systems

Substrate-based systems

These systems use a container to hold the substrate. The container can be made of either plastic or metal. The substrate is placed in a bag which water permeable or directly into the container.

Most of these systems are automated for irrigation. You also need to have Drip trays, these are used to capture any excess water from the medium after irrigation.

This includes droplets of water from the foliage. The drip tray should be sizable enough to hold water volume equal to the irrigation cycle.

The recaptured water can be re-pumped to the top of the wall or recycled. It is important to treat it to avoid nutrient build up.

Hydroponic Wall

Hydroponic walls differ greatly in both design and construction. Modular green models are available and can be bought off the shelf. You can decide to DIY or have custom made model fitted to a wall.

Hydroponics walls are aesthetic and in addition to this they can provide you with fruits, vegetables, flowers and even plants.

Conclusion: If you follow the above details you can now easily get your own hydroponic project moving in the right direction.

All the best.






Last update on 2023-05-22 / Affiliate links / Images from Amazon Product Advertising API
